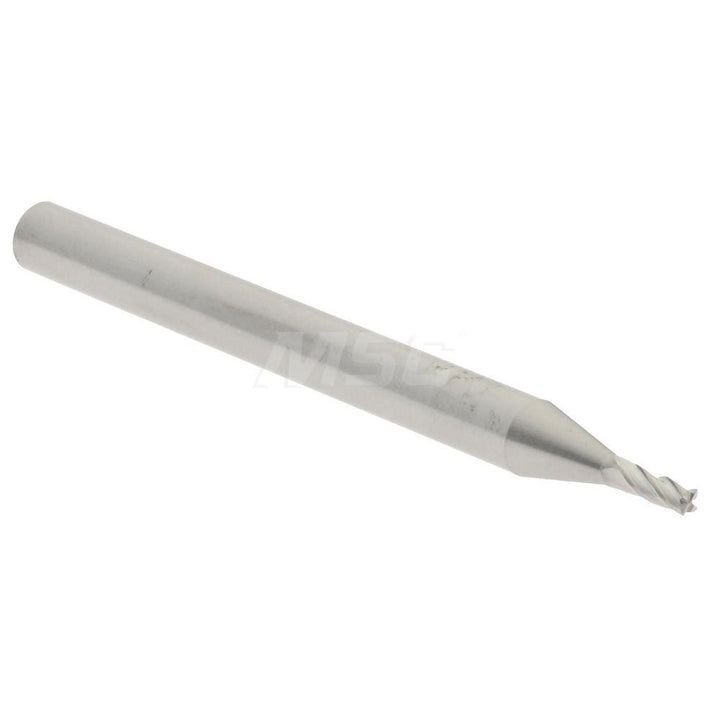

3/64" 4-Flute Solid Carbide Square End Mill - Hertel 12467622

Hertel

3/64" 4-Flute Solid Carbide Square End Mill - Hertel 12467622

MFR# 12467622Series HSQSC4-CC

$12.09List $15.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/64
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Hertel 12467622 is a 3/64 4-flute Solid Carbide (Micrograin) square end mill. 1/8 length of cut, 1-1/2 overall length. Series HSQSC4-CC.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/8
Length of cut range0.1000 - 0.2000
Material gradeMicrograin
Mill diameter in3/64
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Single or double endSingle
System of measurementDecimal Inch
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Titan USA3/64" 4-Flute Solid Carbide Square End Mill, TiCN - Titan USA TC90503 $15.14 Titan USA3/64" 4-Flute Solid Carbide Square End Mill - Titan USA TC10503 $11.11 Hertel3/64" 4-Flute Solid Carbide Square End Mill, TiCN - Hertel 750789 $17.14 SGS3/64" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 39005 $18.70
