5/8" 4-Flute Solid Carbide Square End Mill - Hertel 750045

Hertel

5/8" 4-Flute Solid Carbide Square End Mill - Hertel 750045

MFR# 750045Series HSQSC4-CC

$107.21List $137.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

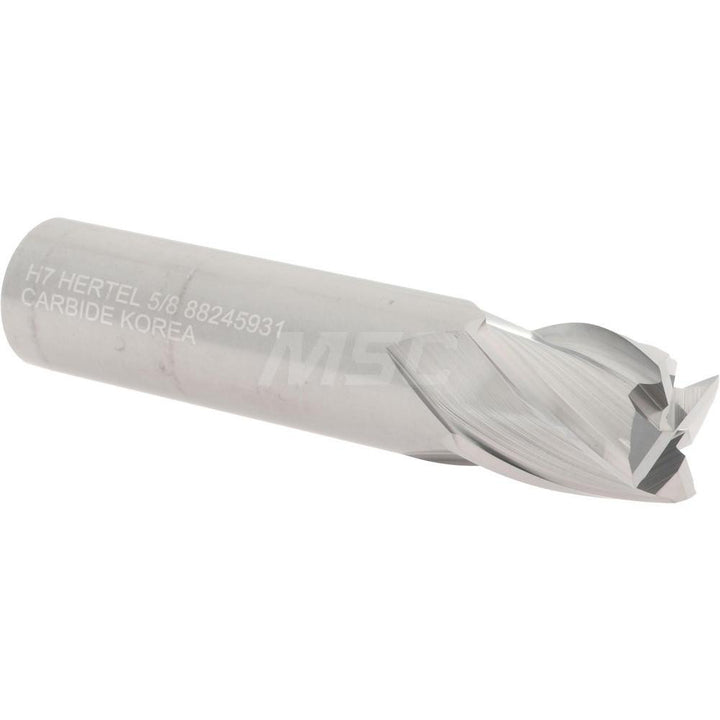

The Hertel 750045 is a 5/8 4-flute Solid Carbide (Micrograin) square end mill. 3/4 length of cut, 3 overall length. Series HSQSC4-CC.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Material gradeMicrograin
Mill diameter in5/8
Number of flutes4
Overall length in3
Shank diameter in5/8
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
