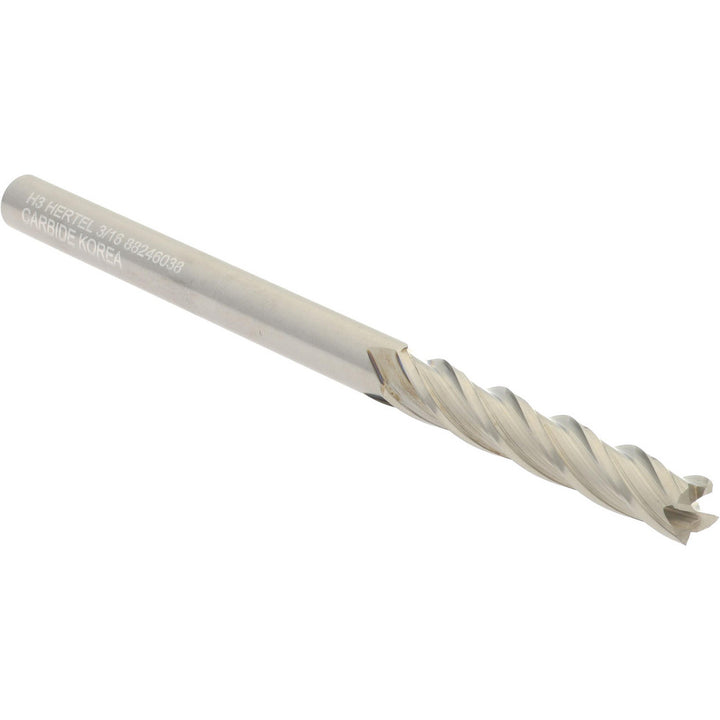

3/16" 4-Flute Solid Carbide Square End Mill - Hertel 750090

Hertel

3/16" 4-Flute Solid Carbide Square End Mill - Hertel 750090

MFR# 750090Series HSQSC4-CC

$19.63List $25.17 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Hertel 750090 is a 3/16 4-flute Solid Carbide (Micrograin) square end mill. 1-1/8 length of cut, 3 overall length. Series HSQSC4-CC.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/8
Length of cut range1.0000 - 1.2500
Material gradeMicrograin
Mill diameter in3/16
Number of flutes4
Overall length in3
Shank diameter in3/16
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
