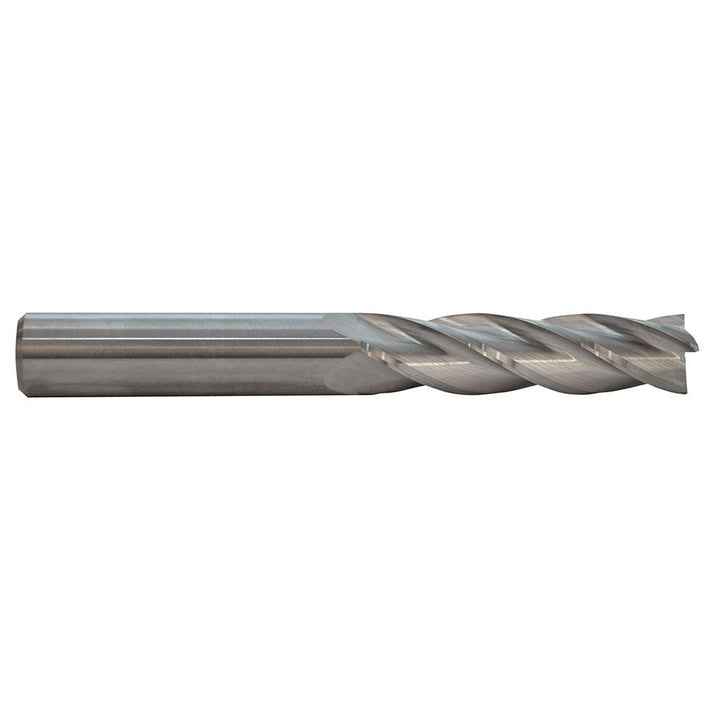

3/16" 4-Flute Solid Carbide Square End Mill, ALtima - M.A. Ford. 12218750A

M.A. Ford.

3/16" 4-Flute Solid Carbide Square End Mill, ALtima - M.A. Ford. 12218750A

MFR# 12218750ASeries 122

$32.23List $40.62 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes4
MaterialSolid Carbide
CoatingALtima

Description

The M.A. Ford. 12218750A is a 3/16 4-flute Solid Carbide (Micrograin) square end mill with a ALtima finish for longer tool life. 1-1/8 length of cut, 3 overall length. Series 122.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishALtima
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/8
Length of cut range1.0000 - 1.2500
Length typeExtra Long
Material gradeMicrograin
Mill diameter in3/16
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes4
Overall length in3
Shank diameter in3/16
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
