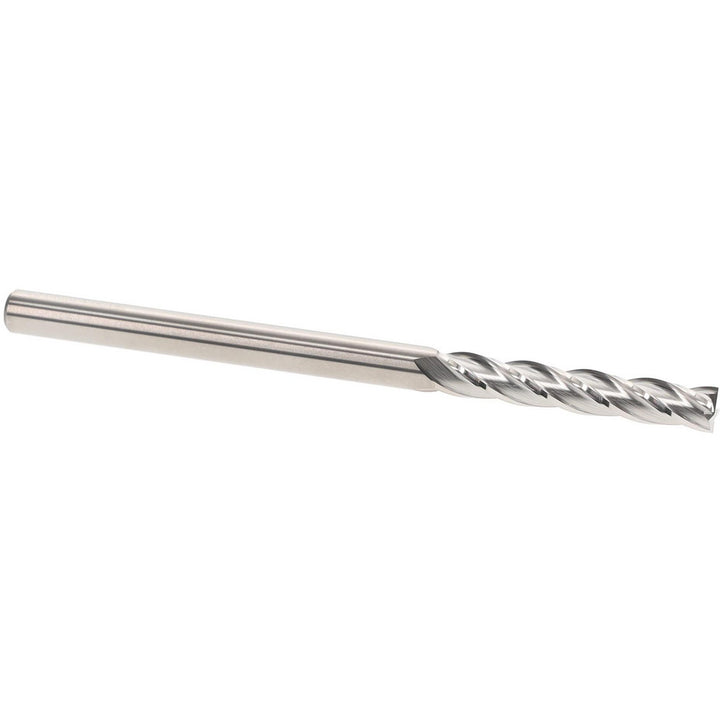

1/4" 4-Flute Solid Carbide Square End Mill - Hertel 750091

Hertel

1/4" 4-Flute Solid Carbide Square End Mill - Hertel 750091

MFR# 750091Series HSQSC4-CC

$27.85List $35.72 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Hertel 750091 is a 1/4 4-flute Solid Carbide (Micrograin) square end mill. 1-1/2 length of cut, 4 overall length. Series HSQSC4-CC.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/2
Length of cut range1.5000 - 2.0000
Material gradeMicrograin
Mill diameter in1/4
Number of flutes4
Overall length in4
Shank diameter in1/4
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
