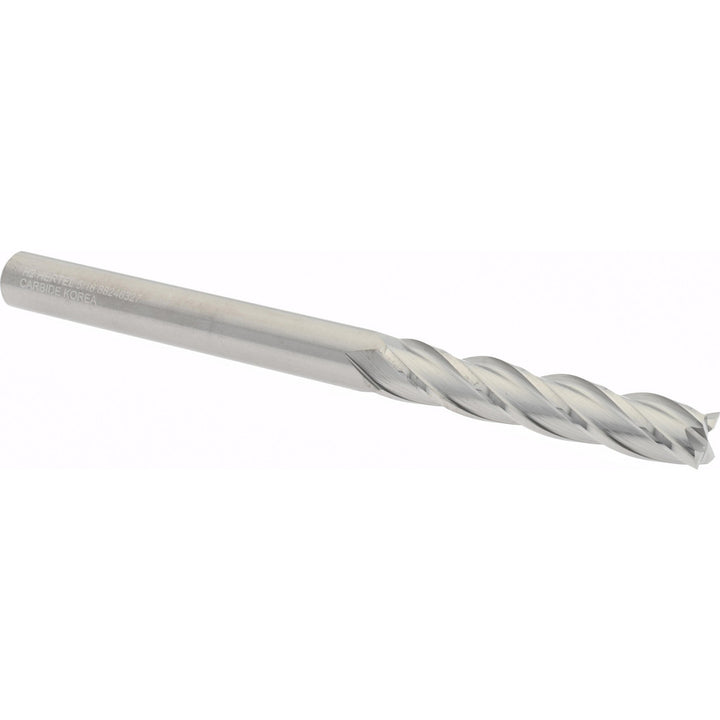

5/16" 4-Flute Solid Carbide Square End Mill - Hertel 750092

Hertel

5/16" 4-Flute Solid Carbide Square End Mill - Hertel 750092

MFR# 750092Series HSQSC4-CC

$37.11List $47.59 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Hertel 750092 is a 5/16 4-flute Solid Carbide (Micrograin) square end mill. 1-5/8 length of cut, 4 overall length. Series HSQSC4-CC.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-5/8
Length of cut range1.5000 - 2.0000
Material gradeMicrograin
Mill diameter in5/16
Number of flutes4
Overall length in4
Shank diameter in5/16
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
