SGS

5/16" 4-Flute Solid Carbide Square End Mill, DLC - SGS 93337

MFR# 93337Series 1EL-AD

$91.77List $117.69 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes4

MaterialSolid Carbide

CoatingDLC

Description

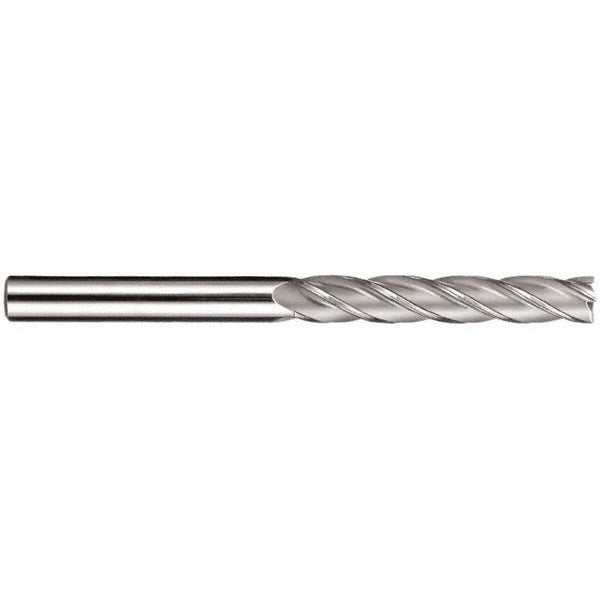

The SGS 93337 is a 5/16 4-flute Solid Carbide (Micrograin) square end mill with a DLC finish for longer tool life. 1-5/8 length of cut, 4 overall length. Series 1EL-AD.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishDLC

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-5/8

Length of cut range1.5000 - 2.0000

Length typeExtra Long

Material gradeMicrograin

Mill diameter in5/16

Number of flutes4

Overall length in4

Shank diameter in5/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexYes
