1/4" 4-Flute Solid Carbide Square End Mill, AlTiN - Hertel 750250

Hertel

1/4" 4-Flute Solid Carbide Square End Mill, AlTiN - Hertel 750250

MFR# 750250

$38.87List $49.85 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

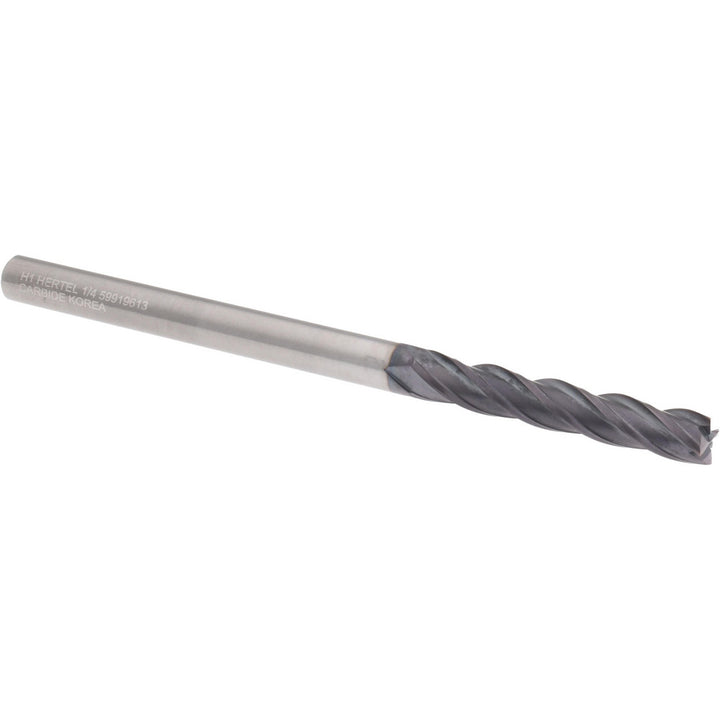

The Hertel 750250 is a 1/4 4-flute Solid Carbide (Micrograin) square end mill. 1-1/2 length of cut, 4 overall length.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/2
Length of cut range1.5000 - 2.0000
Length typeExtra Long
Material gradeMicrograin
Mill diameter in1/4
Number of flutes4
Overall length in4
Shank diameter in1/4
Variable helixNo
Variable indexNo
