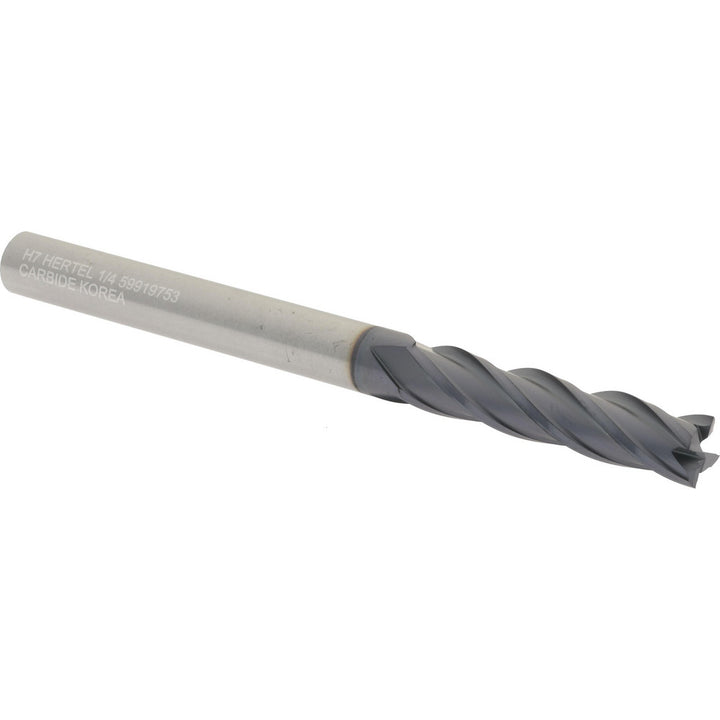

1/4" 4-Flute Solid Carbide Square End Mill, AlTiN - Hertel 750356

Hertel

1/4" 4-Flute Solid Carbide Square End Mill, AlTiN - Hertel 750356

MFR# 750356

$36.66List $47.01 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Hertel 750356 is a 1/4 4-flute Solid Carbide (Micrograin) square end mill. 1-1/8 length of cut, 3 overall length.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/8
Length of cut range1.0000 - 1.2500
Length typeLong
Material gradeMicrograin
Mill diameter in1/4
Number of flutes4
Overall length in3
Shank diameter in1/4
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Titan USA1/4" 4-Flute Solid Carbide Square End Mill, AlTiN - Titan USA TC15616 $33.54 GWS0.2500" 4-Flute Solid Carbide Roughing End Mill, nACRo - GWS 111244 $91.85 Titan USA1/4" 4-Flute Solid Carbide Square End Mill, ALCRO-MAX - Titan USA TC23201 $34.14 Widia1/4" 4-Flute Solid Carbide Ball End Mill, TiAlN - Widia 5825664 $34.74
