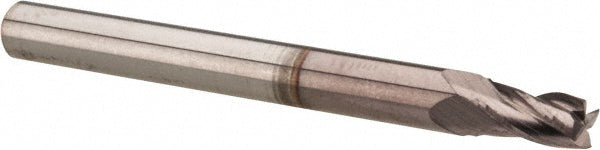

5/32" 4-Flute Solid Carbide Square End Mill, TiCN - Hertel 750491

Hertel

5/32" 4-Flute Solid Carbide Square End Mill, TiCN - Hertel 750491

MFR# 750491

$22.35List $28.67 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/32
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The Hertel 750491 is a 5/32 4-flute Solid Carbide (Micrograin) square end mill. 5/16 length of cut, 2 overall length.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/16
Length of cut range0.3000 - 0.5000
Length typeStub
Material gradeMicrograin
Mill diameter in5/32
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2
Shank diameter in3/16
Variable helixNo
Variable indexNo
