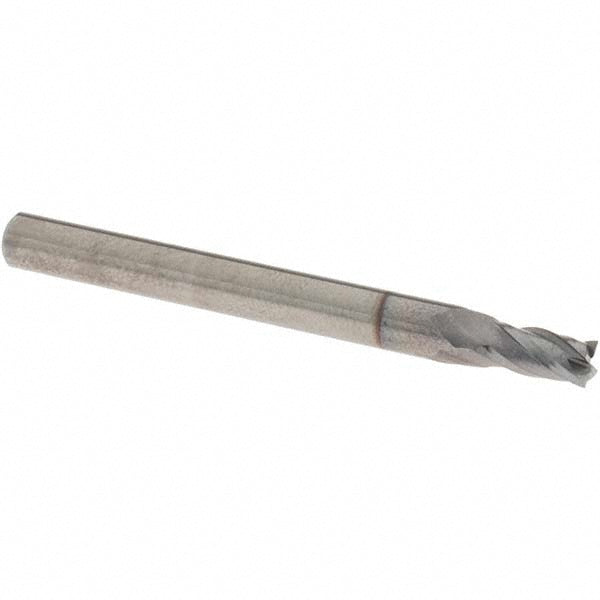

5/32" 4-Flute Solid Carbide Square End Mill, TiCN - OSG 414-156208

OSG

5/32" 4-Flute Solid Carbide Square End Mill, TiCN - OSG 414-156208

MFR# 414-156208Series 414

$17.75List $22.77 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/32
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The OSG 414-156208 is a 5/32 4-flute Solid Carbide (Micrograin) square end mill. 5/16 length of cut, 2 overall length. Series 414.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/16
Length of cut range0.3000 - 0.5000
Length typeStub
Material gradeMicrograin
Mill diameter in5/32
Mill diameter tolerance+0.000/-0.001 in
Number of flutes4
Overall length in2
Shank diameter in3/16
Shank diameter tolerance+0.00000/-0.0005 in
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Hertel5/32" 4-Flute Solid Carbide Square End Mill, TiCN - Hertel 750491 $22.35 OSG5/32" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG 414-156211 $19.89 Harvey Tool5/32" 4-Flute Solid Carbide Square End Mill, AlTiN - Harvey Tool 50310-C3 $29.49 Harvey Tool5/32" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 64510-C6 $82.91
