19/64" 4-Flute Solid Carbide Square End Mill - Hertel 750556

Hertel

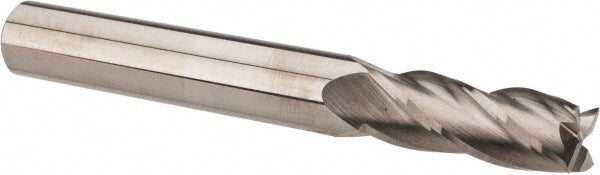

19/64" 4-Flute Solid Carbide Square End Mill - Hertel 750556

MFR# 750556

$33.24List $42.64 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter19/64
Flutes4
MaterialSolid Carbide

Description

The Hertel 750556 is a 19/64 4-flute Solid Carbide square end mill. 13/16 length of cut, 2-1/2 overall length.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in13/16
Length of cut range0.8000 - 1.0000
Mill diameter in19/64
Number of flutes4
Overall length in2-1/2
Shank diameter in5/16
Variable helixNo
Variable indexNo
