19/64" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG 404-296911

OSG

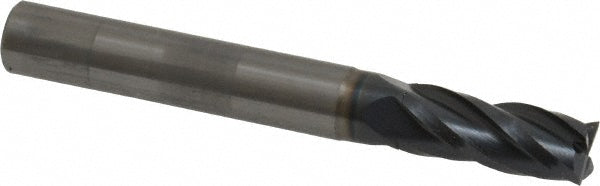

19/64" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG 404-296911

MFR# 404-296911Series 404

$38.49List $49.36 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter19/64
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The OSG 404-296911 is a 19/64 4-flute Solid Carbide (Micrograin) square end mill. 13/16 length of cut, 2-1/2 overall length. Series 404.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in13/16
Length typeRegular
Material gradeMicrograin
Mill diameter in19/64
Mill diameter tolerance+0.000/-0.001 in
Number of flutes4
Overall length in2-1/2
Shank diameter in5/16
Shank diameter tolerance+0.00000/-0.0005 in
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

OSG19/64" 4-Flute Solid Carbide Square End Mill - OSG 404-2969 $26.51 Titan USA19/64" 4-Flute Solid Carbide Square End Mill - Titan USA TC10519 $29.33 Hertel19/64" 4-Flute Solid Carbide Square End Mill - Hertel 750556 $33.24 Hertel19/64" 4-Flute Solid Carbide Square End Mill, TiN - Hertel 750604 $38.67
