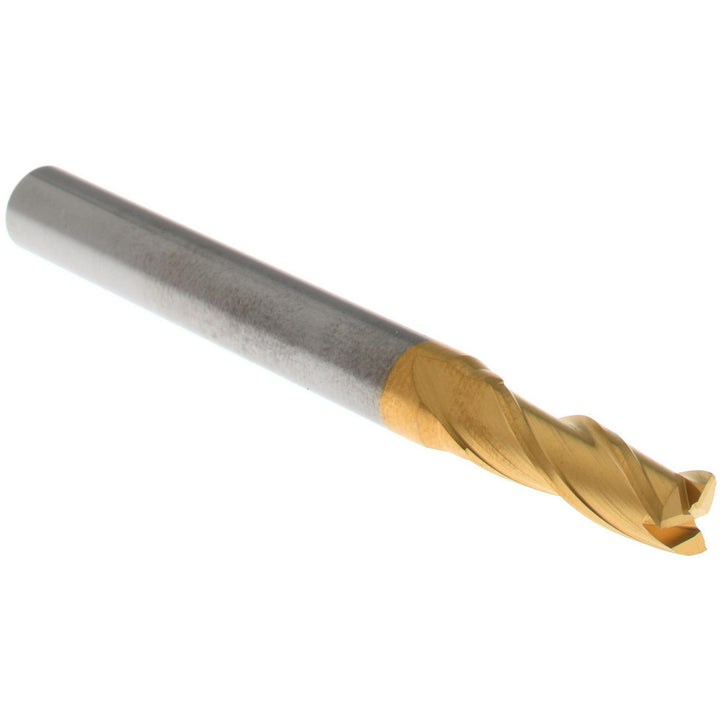

7/32" 3-Flute Solid Carbide Square End Mill, TiN - Hertel 750797

Hertel

7/32" 3-Flute Solid Carbide Square End Mill, TiN - Hertel 750797

MFR# 750797

$27.45List $35.20 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/32
Flutes3
MaterialSolid Carbide
CoatingTiN

Description

The Hertel 750797 is a 7/32 3-flute Solid Carbide (Micrograin) square end mill with a Titanium Nitride finish for longer tool life. 5/8 length of cut, 2-1/2 overall length.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Helix angle30
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Material gradeMicrograin
Mill diameter in7/32
Number of flutes3
Overall length in2-1/2
Shank diameter in1/4
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

RobbJack7/32" 3-Flute Solid Carbide Square End Mill - RobbJack NR-303-07 $44.06 SGS7/32" 3-Flute Solid Carbide Square End Mill, TiCN - SGS 30784 $29.02 Titan USA7/32" 3-Flute Solid Carbide Square End Mill, TiCN - Titan USA TC90814 $25.44 Kennametal7/32" 3-Flute Solid Carbide Square End Mill, TiAlN - Kennametal 6143949 $35.23
