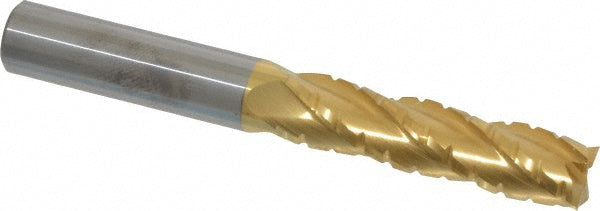

0.5" 4-Flute Solid Carbide Roughing End Mill, TiN - Hertel C430L5000-C1

Hertel

0.5" 4-Flute Solid Carbide Roughing End Mill, TiN - Hertel C430L5000-C1

MFR# C430L5000-C1

$287.39List $368.60 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiN

Description

The Hertel C430L5000-C1 is a 0.5 4-flute Solid Carbide (Micrograin) roughing end mill with a TiN finish for longer tool life.

Specifications

CentercuttingYes
ChipbreakerYes
Coating finishTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Length of cut2.0000
Length typeRegular
Material gradeMicrograin
Mill diameter0.5
Mill diameter frac in1/2
Mill diameter tolerance+0.000 to -0.005 in
Number of flutes4
Shank diameter in1/2
Shank diameter tolerance+0.0001 to -0.0004 in
Single or double endSingle
Variable helixNo
