5/8" 4-Flute High Speed Steel Square End Mill - Hertel E1031040

Hertel

5/8" 4-Flute High Speed Steel Square End Mill - Hertel E1031040

MFR# E1031040

$40.74List $52.24 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes4
MaterialHigh Speed Steel
CoatingBright/Uncoated

Description

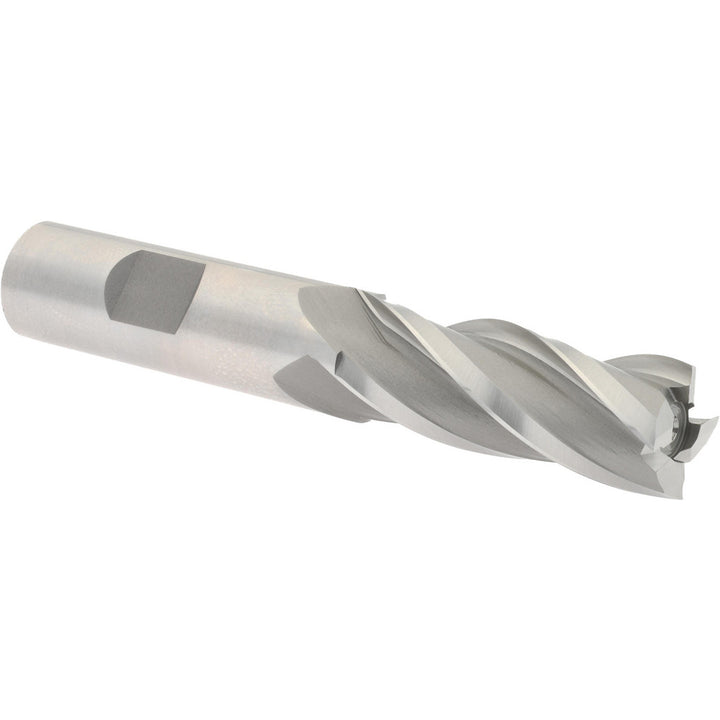

The Hertel E1031040 is a 5/8 4-flute High Speed Steel (M7) square end mill. 1-5/8 length of cut, 3-3/4 overall length.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-5/8
Length of cut range1.5000 - 2.0000
Material gradeM7
Mill diameter in5/8
Number of flutes4
Overall length in3-3/4
Shank diameter in5/8
Variable helixNo
Variable indexNo
