3/16" 4-Flute High Speed Steel Square End Mill - Hertel E1040012

Hertel

3/16" 4-Flute High Speed Steel Square End Mill - Hertel E1040012

MFR# E1040012

$19.53List $25.04 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes4
MaterialHigh Speed Steel

Description

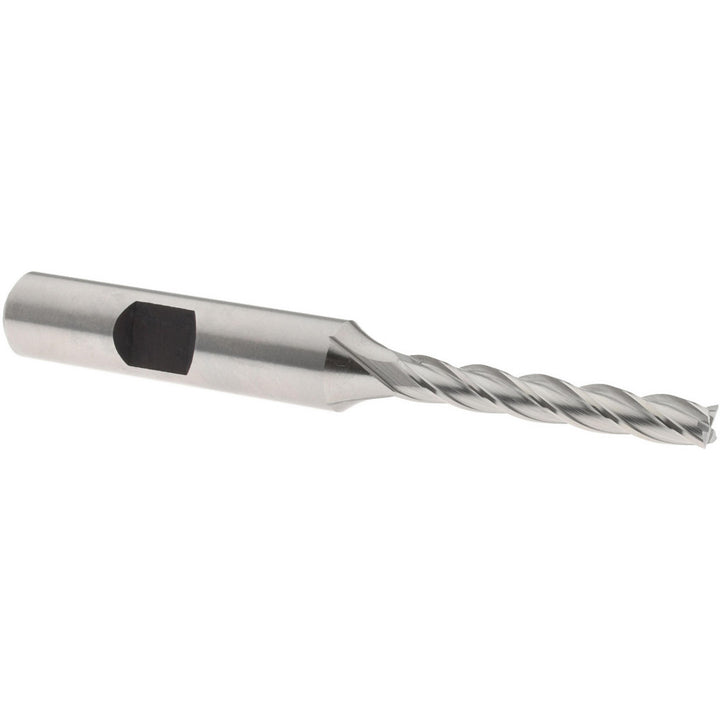

The Hertel E1040012 is a 3/16 4-flute High Speed Steel (M7) square end mill. 1-1/4 length of cut, 3-1/16 overall length.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/4
Length of cut range1.2500 - 1.5000
Material gradeM7
Mill diameter in3/16
Number of flutes4
Overall length in3-1/16
Shank diameter in3/8
Variable helixNo
Variable indexNo
