5/16" 4-Flute Cobalt Ball End Mill - Hertel E2020020

Hertel

5/16" 4-Flute Cobalt Ball End Mill - Hertel E2020020

MFR# E2020020

$21.82List $27.98 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16
Flutes4
MaterialCobalt
CoatingUncoated

Description

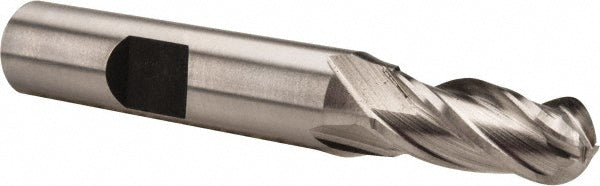

The Hertel E2020020 is a 5/16 4-flute Cobalt (M42) ball end mill. 3/4 length of cut, 2-1/2 overall length.

Specifications

Coating finishUncoated
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length typeRegular
Material gradeM42
Mill diameter in5/16
Number of flutes4
Overall length in2-1/2
Shank diameter in3/8
Single or double endSingle
Variable helixNo
Variable indexNo
