Ingersoll Cutting Tools

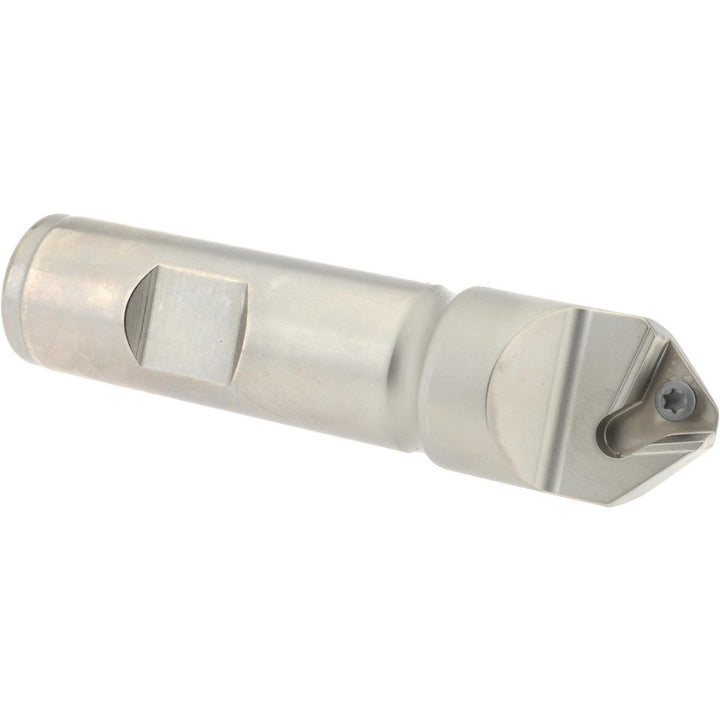

Indexable Drilling - Ingersoll Cutting Tools 3207688
MFR# 3207688Series FAK
$314.84
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes1
Description
The Ingersoll Cutting Tools 3207688 indexable drilling. Suited for universal. Series FAK.
Specifications
CoatedUncoated
Compatible insert size code15T308
Compatible insert styleTFLT
Coolant entry style code0-Without Coolant
Cutting directionRight Hand
Drill bit point angle90
Drill diameter0.8420
Drill typeSpotting Drill
Flute typeStraight
Maximum depth of cut0.2000in
Number of drill inserts1
Number of flutes1
Overall length3.50
Primary workpiece materialUniversal
Shank diameter0.7500
Shank diameter frac in3/4
Shank typeWeldon Flat
Through coolantNo
Tool applicationSpotting
Tool materialSteel
Tool performanceGeneral Purpose
