Ingersoll Cutting Tools

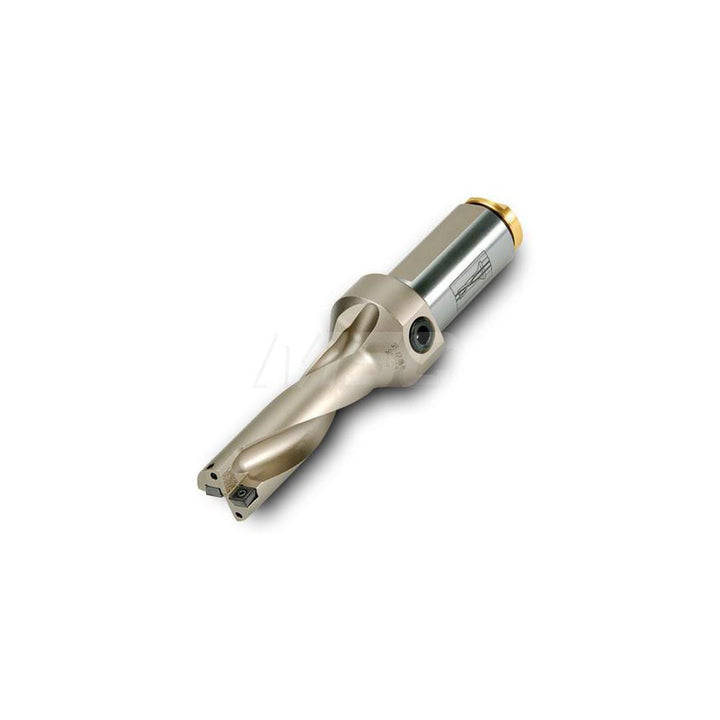

Indexable Drilling - Ingersoll Cutting Tools 3240721
MFR# 3240721Series Quad Drill
$724.01
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Ingersoll Cutting Tools 3240721 indexable drilling. Series Quad Drill.
Specifications
Body length3.8600
Compatible drill styleQ
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Insert compatibilitySPLT 07T308N-PH
Insert size0.3130x0.1600
Maximum drill depth2.8100
Maximum drill depth range2.0000 to 3.0000
Maximum drill diameter0.9570
Modular connection size1-1/4 in
Neck diameter in1.7700
Number of drill inserts2
Shank diameter in1-1/4
Shank length2.3600
Shank typeStraight-Cylindrical
Tool applicationDrilling
Tool performanceGeneral Purpose
