Ingersoll Cutting Tools

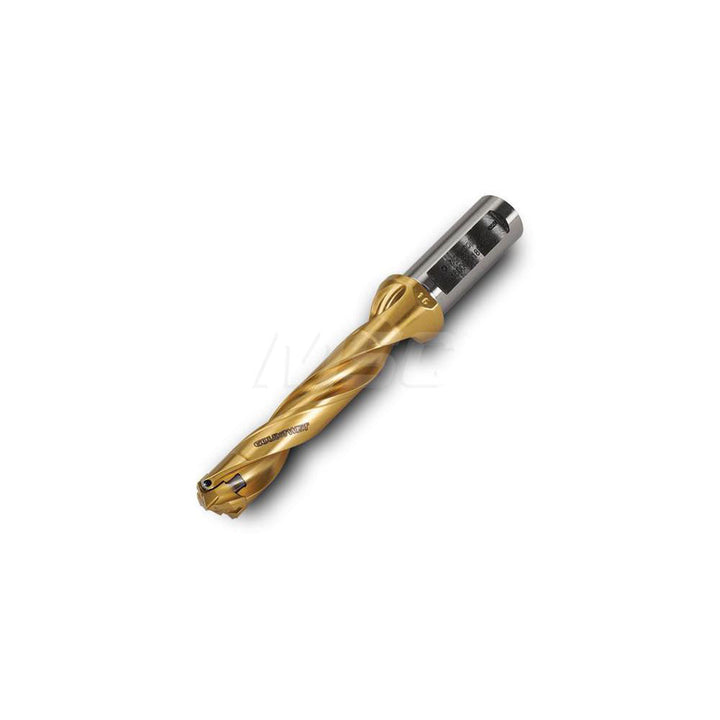

Indexable Drilling - Ingersoll Cutting Tools 6181215
MFR# 6181215Series TD
$387.49
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Ingersoll Cutting Tools 6181215 indexable drilling. Series TD.
Specifications
Body length3.35
Compatible insert styleTKA; TMA; TNA; TPA; TPC; TPF
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio5xD
Flute length2.6800
Insert seat size13.5
Maximum drill depth2.6800
Maximum drill diameter0.5472
Minimum drill diameter0.5315
Overall length5.24
Shank diameter0.6250
Shank length1.8900
Shank typeStraight-Cylindrical
Toolholder styleSC HYDRO; SC T
Tool applicationDrilling
Tool materialSteel
