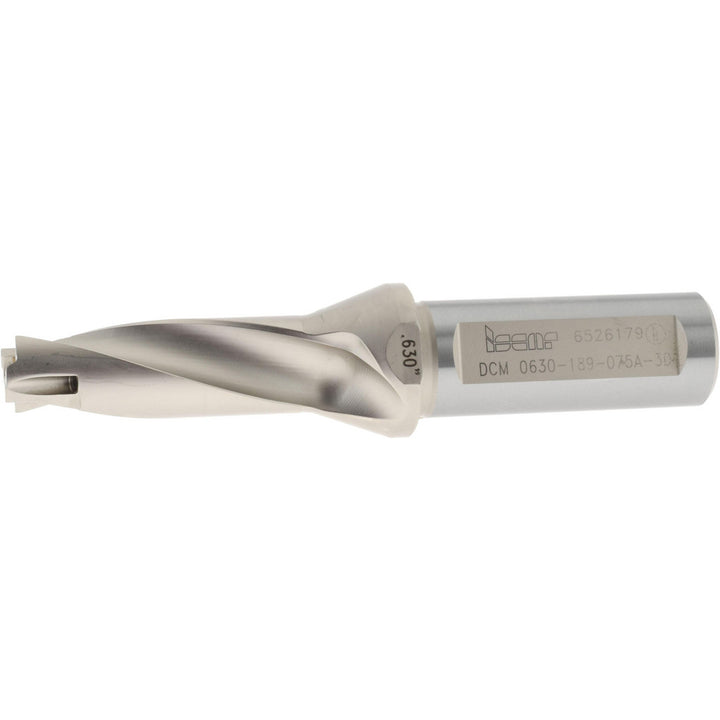

Indexable Drilling - Iscar 3200485
MFR# 3200485Series CHAMDRILL
$289.27List $298.70
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3200485 indexable drilling. Series CHAMDRILL.
Specifications
Body length2.75
Compatible insert styleIDI
Coolant throughYes
Drill depth by diameter ratio3xD
Insert seat size16
Maximum drill depth1.8900
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.6650
Minimum drill diameter0.6300
Overall length4.72
Shank diameter in3/4
Shank length1.9700
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCM
Tool applicationHolemaking
