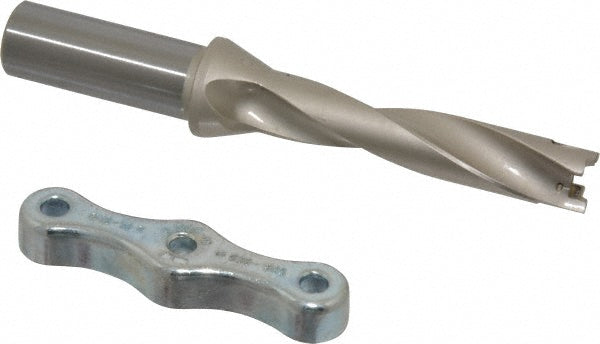

Indexable Drilling - Iscar 3200486
MFR# 3200486Series CHAMDRILL
$341.17List $352.30
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3200486 indexable drilling. Series CHAMDRILL.
Specifications
Body length4.0100in
Compatible insert styleIDI
Coolant throughYes
Drill depth by diameter ratio5xD
Insert seat size16
Maximum drill depth3.1500
Maximum drill depth range2.5000 to 3.5000
Maximum drill diameter0.6650
Minimum drill diameter0.6300
Overall length5.9800in
Shank diameter in3/4in
Shank length1.9700in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCM
Tool applicationHolemaking
