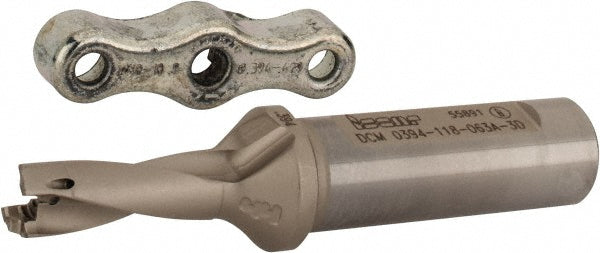

Indexable Drilling - Iscar 3200537
MFR# 3200537Series CHAMDRILL
$247.33List $255.40
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3200537 indexable drilling. Series CHAMDRILL.
Specifications
Body length1.7300in
Compatible insert styleIDI-SG; IDI-SK
Coolant throughYes
Drill depth by diameter ratio3xD
Insert seat size10
Maximum drill depth1.1800
Maximum drill depth range0.0000 to 1.5000
Maximum drill diameter0.4090
Minimum drill diameter0.3940
Overall length3.6200in
Shank diameter in5/8in
Shank length1.8900in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCM
Tool applicationHolemaking
