Iscar

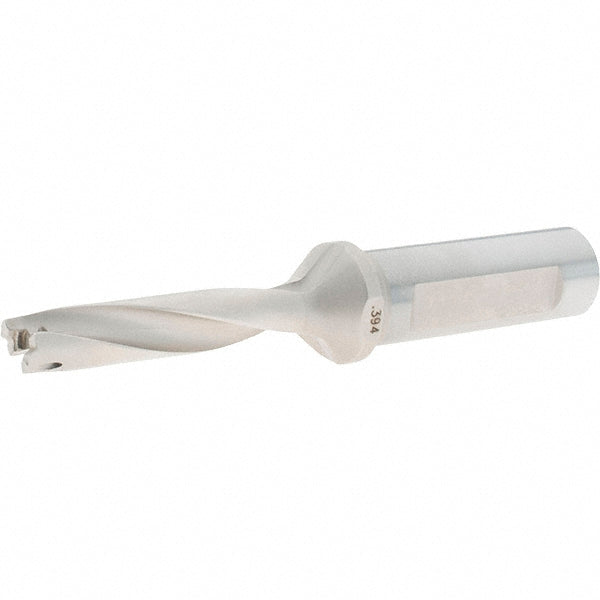

Indexable Drilling - Iscar 3200538
MFR# 3200538Series CHAMDRILL
$290.23List $299.70
Save 3%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3200538 indexable drilling. Series CHAMDRILL.
Specifications
Body length2.5200in
Compatible insert styleIDI
Coolant throughYes
Drill depth by diameter ratio5xD
Insert seat size10
Maximum drill depth1.9600
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.4090
Minimum drill diameter0.3940
Overall length4.4100in
Shank diameter in5/8in
Shank length1.8900in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCM
Tool applicationHolemaking
