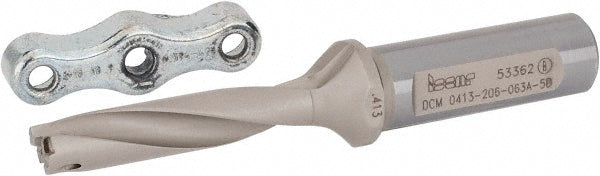

Indexable Drilling - Iscar 3200542
MFR# 3200542Series CHAMDRILL
$299.24List $309.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3200542 indexable drilling. Series CHAMDRILL.
Specifications
Body length2.6400in
Compatible insert styleIDI-SG; IDI-SK
Coolant throughYes
Drill depth by diameter ratio5xD
Maximum drill depth2.0600
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.4290
Minimum drill diameter0.4130
Overall length4.5300in
Shank diameter in5/8in
Shank length1.8900in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCM
Tool applicationHolemaking
