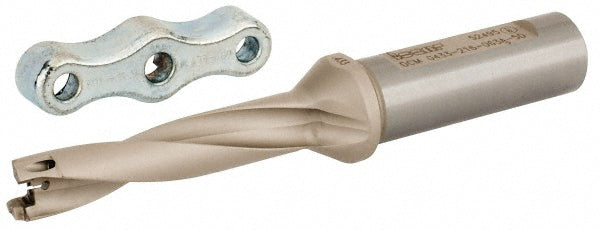

Indexable Drilling - Iscar 3200546
MFR# 3200546Series CHAMDRILL
$299.24List $309.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3200546 indexable drilling. Series CHAMDRILL.
Specifications
Body length1.8900in
Compatible insert styleIDI
Coolant throughYes
Drill depth by diameter ratio5xD
Insert seat size11
Maximum drill depth1.3000
Maximum drill depth range0.0000 to 1.5000
Maximum drill diameter0.4490
Minimum drill diameter0.4330
Overall length4.6500in
Shank diameter in5/8in
Shank length1.8900in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCM
Tool applicationHolemaking
