Iscar

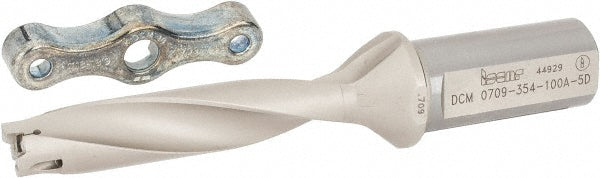

Indexable Drilling - Iscar 3200586
MFR# 3200586Series CHAMDRILL
$346.11List $357.40
Save 3%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3200586 indexable drilling. Series CHAMDRILL.
Specifications
Body length4.5000in
Compatible insert styleIDI-SG; IDI-SK
Coolant throughYes
Drill depth by diameter ratio5xD
Maximum drill depth3.5400
Maximum drill depth range3.5000 to 4.5000
Maximum drill diameter0.7440
Minimum drill diameter0.7090
Overall length6.4700in
Shank diameter in1in
Shank length1.9700in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCM
Tool applicationHolemaking
