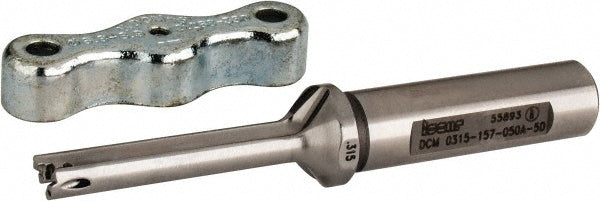

Indexable Drilling - Iscar 3200639
MFR# 3200639Series CHAMDRILL
$257.59List $266.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3200639 indexable drilling. Series CHAMDRILL.
Specifications
Body length2.0000in
Compatible insert styleIDI
Coolant throughYes
Drill depth by diameter ratio5xD
Insert seat size8
Maximum drill depth1.5700
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.3310
Minimum drill diameter0.3150
Overall length3.7700in
Shank diameter in1/2in
Shank length1.7700in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCM
Tool applicationHolemaking
