Iscar

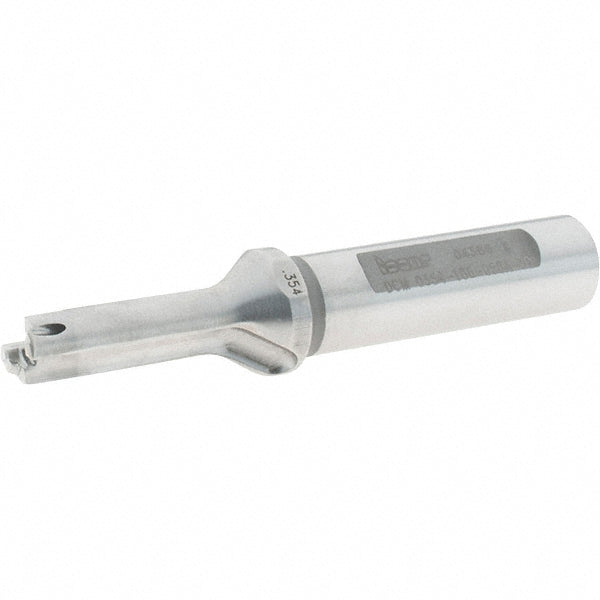

Indexable Drilling - Iscar 3200646
MFR# 3200646Series CHAMDRILL
$229.44List $232.80
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3200646 indexable drilling. Series CHAMDRILL.
Specifications
Body length1.5300in
Compatible insert styleIDI-SG; IDI-SK
Coolant throughYes
Drill depth by diameter ratio3xD
Maximum drill depth1.0600
Maximum drill depth range0.0000 to 1.5000
Maximum drill diameter0.3700
Minimum drill diameter0.3540
Overall length3.3000in
Shank diameter in1/2in
Shank length1.7700in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCM
Tool applicationHolemaking
