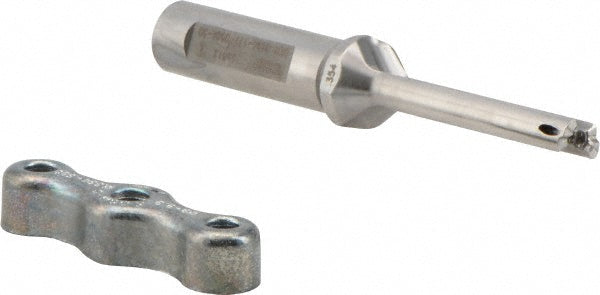

Indexable Drilling - Iscar 3200647
MFR# 3200647Series CHAMDRILL
$257.59List $266.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3200647 indexable drilling. Series CHAMDRILL.
Specifications
Body length2.2500in
Compatible insert styleIDI
Coolant throughYes
Drill depth by diameter ratio5xD
Insert seat size9
Maximum drill depth1.7700
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.3700
Minimum drill diameter0.3540
Overall length4.0200in
Shank diameter in1/2in
Shank length1.7700in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCM
Tool applicationHolemaking
