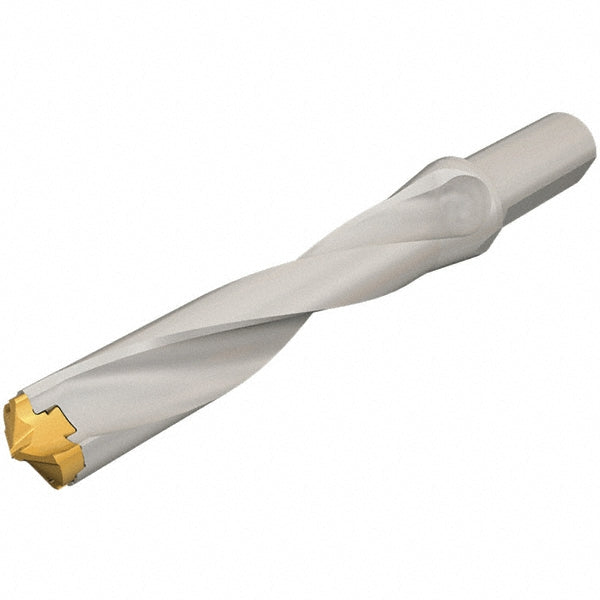

Indexable Drilling - Iscar 3200682
MFR# 3200682Series CHAMDRILL
$509.68List $526.30
Save 3%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3200682 indexable drilling. Series CHAMDRILL.
Specifications
Body length151.60
Compatible insert styleIDI-SG; IDI-SK
Coolant throughYes
Drill depth by diameter ratio5xD
Insert seat size24
Maximum drill depth (mm)120.00
Maximum drill depth range (mm)100.00 to 125.00
Maximum drill diameter (mm)24.90
Minimum drill diameter (mm)24.00
Overall length (mm)207.60mm
Shank diameter (mm)25.00mm
Shank length (mm)56.00mm
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCM
Tool applicationHolemaking
