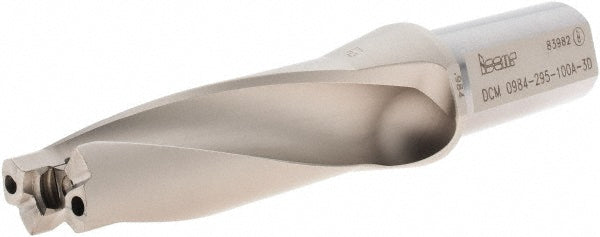

Indexable Drilling - Iscar 3200688
MFR# 3200688Series CHAMDRILL
$482.75List $498.50
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3200688 indexable drilling. Series CHAMDRILL.
Specifications
Body length4.2900in
Compatible insert styleIDI-SG; IDI-SK
Coolant throughYes
Drill depth by diameter ratio3xD
Insert seat size25
Maximum drill depth2.9500
Maximum drill depth range2.5000 to 3.5000
Maximum drill diameter1.0200
Minimum drill diameter0.9840
Overall length6.4900in
Shank diameter in1in
Shank length2.2000in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCM
Tool applicationHolemaking
