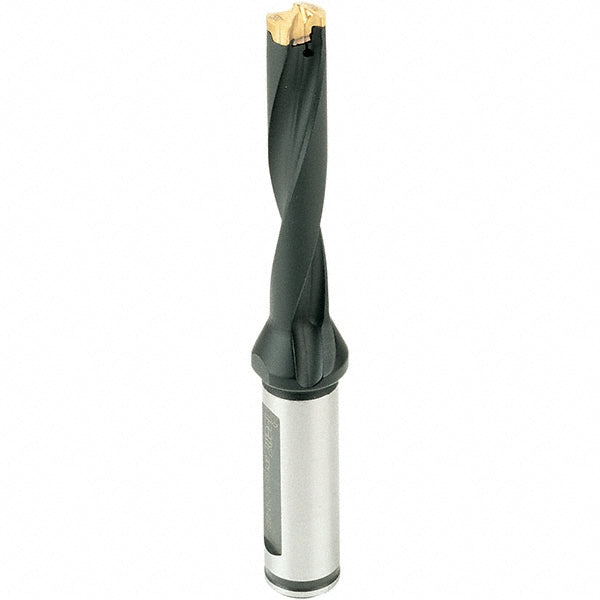

Indexable Drilling - Iscar 3200690
MFR# 3200690Series CHAMDRILL
$489.72List $505.70
Save 3%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3200690 indexable drilling. Series CHAMDRILL.
Specifications
Body length5.4700in
Compatible insert styleIDI-SG; IDI-SK
Coolant throughYes
Drill depth by diameter ratio5xD
Maximum drill depth4.3300
Maximum drill depth range3.5000 to 4.5000
Maximum drill diameter0.9010
Minimum drill diameter0.8660
Overall length7.6700in
Shank diameter in1in
Shank length2.2000in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCM
Tool applicationHolemaking
