Iscar

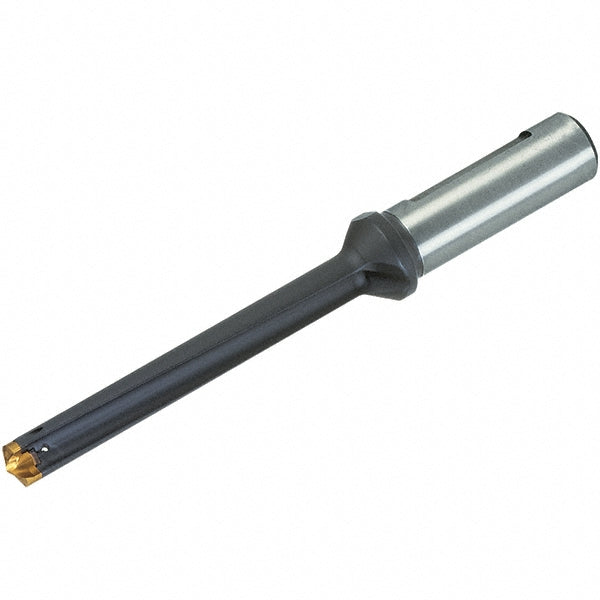

Indexable Drilling - Iscar 3200968
MFR# 3200968Series UniChamDrill
$237.52List $241.00
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3200968 indexable drilling. Series UniChamDrill.
Specifications
Body length1.3268in
Compatible insert styleIDI-SG; IDI-SK
Coolant throughYes
Insert seat size8
Maximum drill depth1.0236
Maximum drill depth range0.0000 to 1.5000
Maximum drill diameter0.3110
Minimum drill diameter0.2953
Overall length3.0197in
Shank diameter0.3150
Shank length1.6929in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCM
Tool applicationChamfering; Holemaking
