Iscar

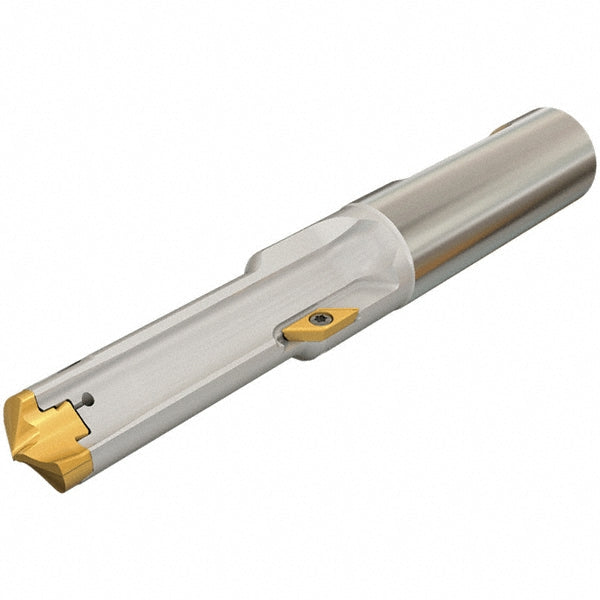

Indexable Drilling - Iscar 3201005
MFR# 3201005Series CHAMDRILL
$309.21List $319.30
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201005 indexable drilling. Series CHAMDRILL.
Specifications
Body length2.0488in
Compatible insert styleAOMT; IDI-SG; IDI-SK
Coolant throughYes
Maximum drill depth1.1820
Maximum drill depth range0.0000 to 1.5000
Maximum drill diameter0.4330
Minimum drill diameter0.3940
Overall length3.8218in
Shank diameter0.5516
Shank length1.7730in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCT
Tool applicationHolemaking
