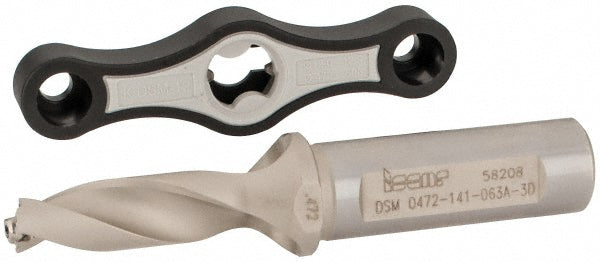

Indexable Drilling - Iscar 3201038
MFR# 3201038Series ChamDrillJet
$290.23List $299.70
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201038 indexable drilling. Series ChamDrillJet.
Specifications
Body length1.9900in
Compatible insert styleIDK; IDM; IDN; IDP
Coolant throughYes
Drill depth by diameter ratio3xD
Maximum drill depth1.4100
Maximum drill depth range0.0000 to 1.5000
Maximum drill diameter0.5080
Minimum drill diameter0.4720
Overall length3.9700in
Shank diameter in5/8in
Shank length1.9800in
Shank typeWeldon Flat
Toolholder styleDSM
