Iscar

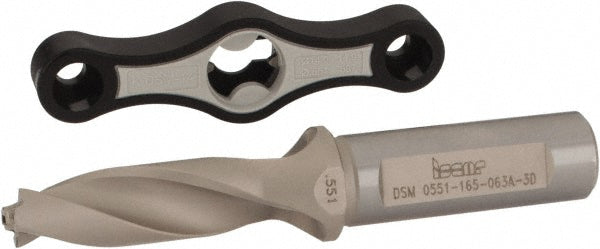

Indexable Drilling - Iscar 3201040
MFR# 3201040Series ChamDrillJet
$317.75List $322.40
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201040 indexable drilling. Series ChamDrillJet.
Specifications
Body length2.2900in
Compatible insert styleIDK; IDM; IDN; IDP
Coolant throughYes
Drill depth by diameter ratio3xD
Maximum drill depth1.6500
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.5870
Minimum drill diameter0.5510
Overall length4.2700in
Shank diameter in5/8in
Shank length1.9800in
Shank typeWeldon Flat
Toolholder styleDSM
