Iscar

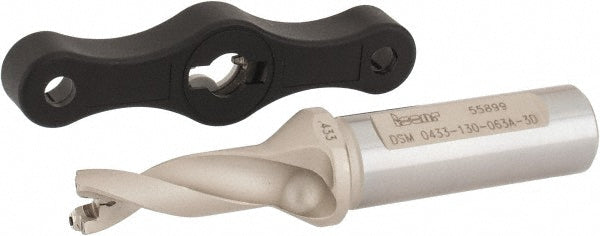

Indexable Drilling - Iscar 3201061
MFR# 3201061Series ChamDrillJet
$290.23List $299.70
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201061 indexable drilling. Series ChamDrillJet.
Specifications
Body length1.8300in
Compatible insert styleIDK; IDM; IDN; IDP
Coolant throughYes
Drill depth by diameter ratio3xD
Insert seat size11
Maximum drill depth1.3000
Maximum drill depth range0.0000 to 1.5000
Maximum drill diameter0.4690
Minimum drill diameter0.4330
Overall length3.8100in
Shank diameter in5/8in
Shank length1.9800in
Shank typeWeldon Flat
Toolholder styleDSM
