Iscar

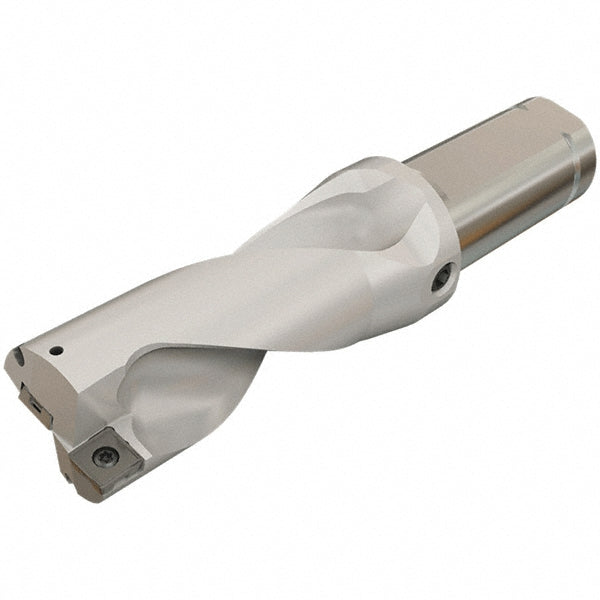

Indexable Drilling - Iscar 3201308
MFR# 3201308Series DR-2D-N
$494.86List $511.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201308 indexable drilling. Series DR-2D-N.
Specifications
Body length1.9500
Body side coolant hole thread size in1/16-27
Collar diameter1.1020
Compatible drill styleDR
Compatible insert size code050204
Compatible insert styleSOMX
Coolant entry style code3- Axial Concentric & Radial
Coolant hole thread size"1/16-27 NPT"
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2xD
Flute length1.1300
Insert compatibilitySOMX050204
Insert lock screwSR 34-533/L
Insert size0.2130
Maximum drill depth1.1300
Maximum drill depth range1.0000 to 2.0000
Maximum drill diameter in9/16
Modular connection size3/4 in
Neck diameter in1.1020
Number of drill inserts2
Overall length4.9500
Shank diameter in3/4
Shank end coolant hole thread size in1/4-18
Shank length3.0000
Shank typeWeldon Flat
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
