Iscar

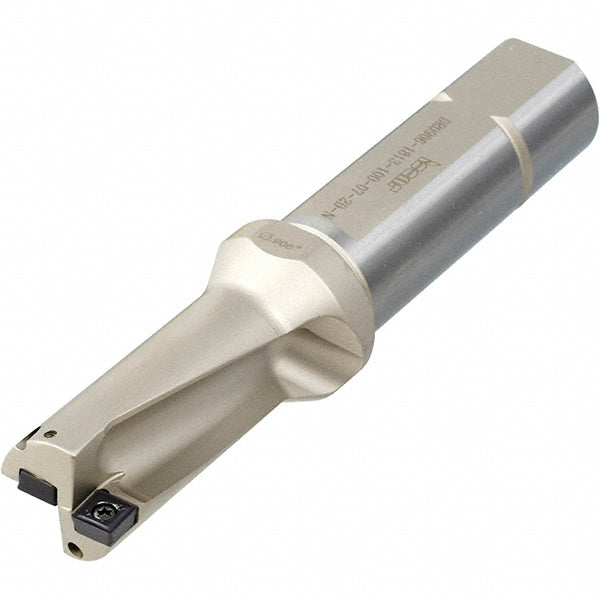

Indexable Drilling - Iscar 3201312
MFR# 3201312Series DR-TWIST
$542.50List $560.20
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201312 indexable drilling. Series DR-TWIST.
Specifications
Body length2.1400
Body side coolant hole thread size in1/16-27
Collar diameter1.1020
Compatible drill styleDR
Compatible insert size code05
Compatible insert styleSOMX
Coolant hole thread size1/16-27
Coolant throughYes
Drill depth by diameter ratio2xD
Drill diameter in21/32
Insert compatibilitySOGX-AL; SOMX-DT; SOMX-GF
Maximum drill depth1.3100
Maximum drill depth range1.0000 to 2.0000
Maximum drill diameter in21/32
Modular connection size3/4 in
Neck diameter in1.1020
Number of drill inserts2
Shank diameter in3/4
Shank end coolant hole thread size in1/4-18
Shank length3.0000
Shank typeStraight-Cylindrical
Tool applicationHolemaking
Tool performanceGeneral Purpose
