Iscar

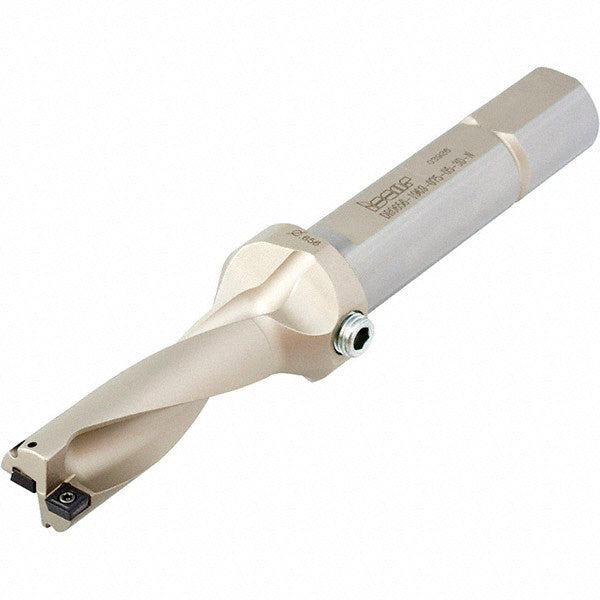

Indexable Drilling - Iscar 3201322
MFR# 3201322Series DR-3D-N
$543.47List $561.20
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201322 indexable drilling. Series DR-3D-N.
Specifications
Body length2.6000
Collar diameter1.1020
Compatible drill styleDR
Compatible insert size code050204
Compatible insert styleSOMX
Coolant entry style code1-Axial Concentric Entry
Coolant hole thread size"1/4-18 NPT"
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Flute length1.7800
Insert compatibilitySOMX050204
Insert lock screwSR 34-533/L
Insert size0.2130
Maximum drill depth1.7800
Maximum drill depth range1.0000 to 2.0000
Maximum drill diameter in19/32
Modular connection size3/4 in
Neck diameter in1.1020
Number of drill inserts2
Overall length5.6000
Shank diameter in3/4
Shank length3.0000
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
