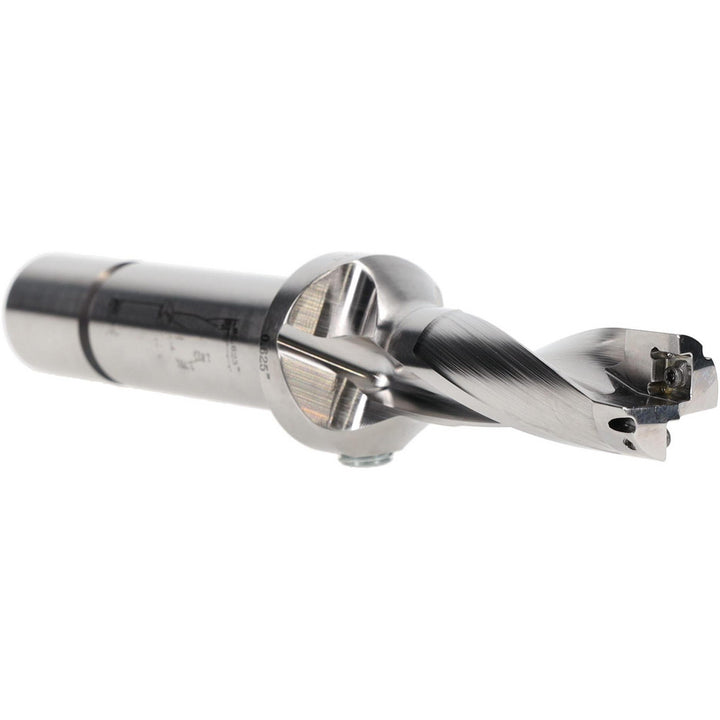

Indexable Drilling - Iscar 3201323
MFR# 3201323Series DR-TWIST
$570.88List $589.50
Save 3%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201323 indexable drilling. Series DR-TWIST.
Specifications
Body length2.6200
Body side coolant hole thread size in1/16-27
Compatible drill styleDR
Compatible insert size code050204-DT
Compatible insert styleSOMX
Coolant hole thread size1/16-27
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Drill diameter in5/8
Maximum drill depth1.8800
Maximum drill depth range1.0000 to 2.0000
Maximum drill diameter in5/8
Modular connection size3/4 in
Neck diameter in1.1020
Number of drill inserts2
Overall length5.7000
Shank diameter in3/4
Shank end coolant hole thread size in1/4-18
Shank length3.0000
Shank typeStraight-Cylindrical
Tool applicationHolemaking
Tool performanceGeneral Purpose
