Iscar

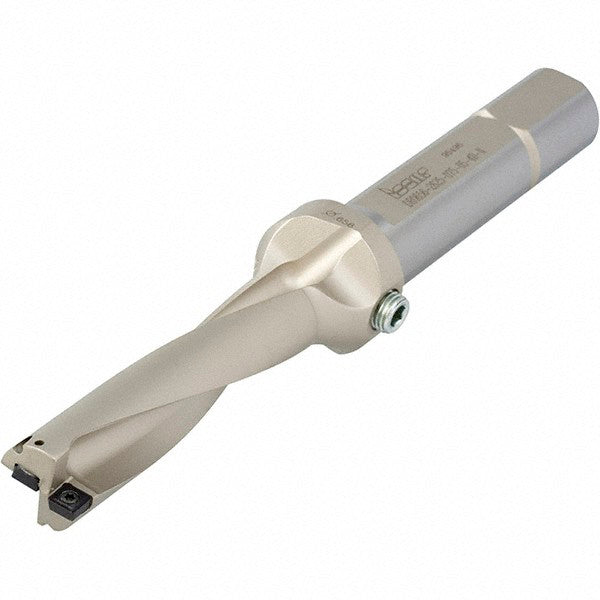

Indexable Drilling - Iscar 3201334
MFR# 3201334Series DR-4D-N
$626.75List $647.20
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201334 indexable drilling. Series DR-4D-N.
Specifications
Body length3.2000
Body side coolant hole thread size in1/16-27
Collar diameter1.1020
Compatible drill styleDR
Compatible insert size code050204
Compatible insert styleSOMX
Coolant entry style code3- Axial Concentric & Radial
Coolant hole thread size"1/16-27 NPT"
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio4xD
Flute length2.3800
Insert compatibilitySOMX050204
Insert lock screwSR 34-533/L
Insert size0.2130
Maximum drill depth2.3800
Maximum drill depth range2.0000 to 3.0000
Maximum drill diameter in19/32
Modular connection size3/4 in
Neck diameter in1.1020
Number of drill inserts2
Overall length6.2000
Shank diameter in3/4
Shank end coolant hole thread size in1/4-18
Shank length3.0000
Shank typeWeldon Flat
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
