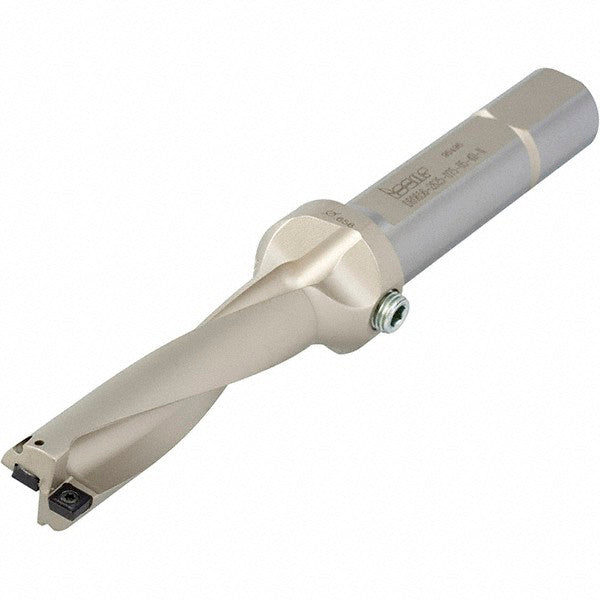

Indexable Drilling - Iscar 3201336
MFR# 3201336Series DR-TWIST
$667.91List $677.70
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201336 indexable drilling. Series DR-TWIST.
Specifications
Body length3.4500
Body side coolant hole thread size in1/16-27
Collar diameter1.1020
Compatible drill styleDR
Coolant hole thread size1/16-27
Coolant throughYes
Drill depth by diameter ratio4xD
Drill diameter in21/32
Insert compatibilitySOGX-AL; SOMX-DT; SOMX-GF
Maximum drill depth2.6300
Maximum drill depth range2.0000 to 3.0000
Maximum drill diameter in21/32
Modular connection size3/4 in
Neck diameter in1.1020
Number of drill inserts2
Shank diameter in3/4
Shank end coolant hole thread size in1/4-18
Shank length3.0000
Shank typeStraight-Cylindrical
Tool applicationHolemaking
Tool performanceGeneral Purpose
