Iscar

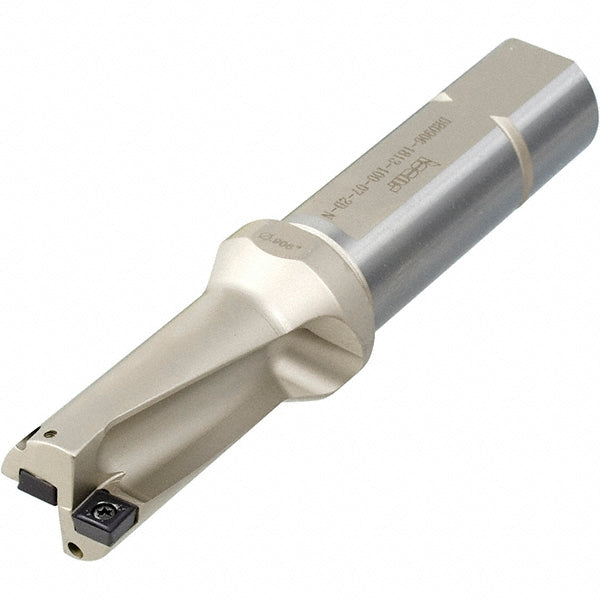

Indexable Drilling - Iscar 3201359
MFR# 3201359Series DR-2D-N
$542.50List $560.20
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201359 indexable drilling. Series DR-2D-N.
Specifications
Body length2.3600
Body side coolant hole thread size in1/16-27
Collar diameter1.2600
Compatible drill styleDR
Compatible insert size code060304
Compatible insert styleSOMX
Coolant entry style code3- Axial Concentric & Radial
Coolant hole thread size"1/16-27 NPT"
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2xD
Flute length1.5000
Insert compatibilitySOMX060304
Insert lock screwSR 34-508/L
Insert size0.2441
Maximum drill depth in1-1/2
Maximum drill depth range1.0000 to 2.0000
Maximum drill diameter in3/4
Modular connection size1 in
Neck diameter in1.2600
Number of drill inserts2
Overall length5.3600
Shank diameter in1
Shank end coolant hole thread size in3/8-18
Shank length3.0000
Shank typeWeldon Flat
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
