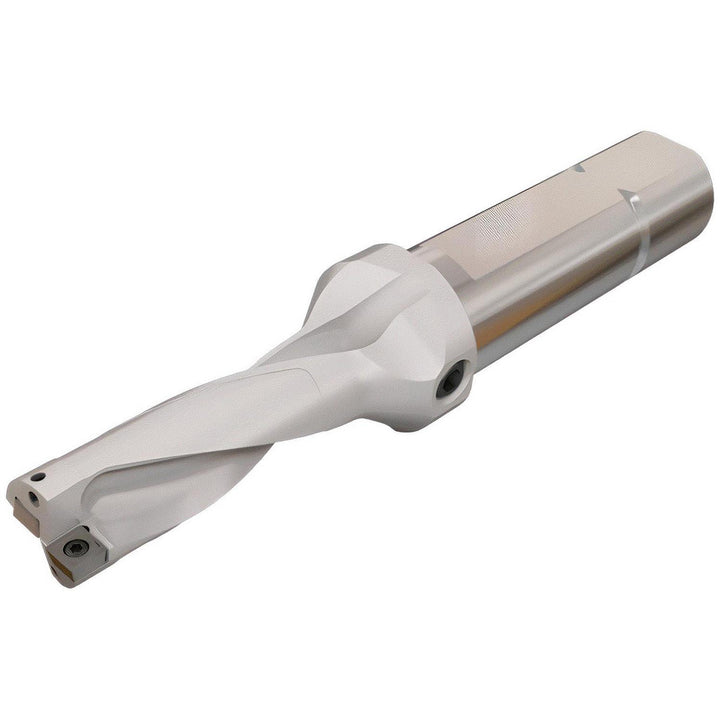

Indexable Drilling - Iscar 3201361
MFR# 3201361Series DR-TWIST
$544.24List $562.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201361 indexable drilling. Series DR-TWIST.
Specifications
Body length2.8900
Collar diameter1.1020
Compatible drill styleDR
Compatible insert size code050204-DT
Compatible insert styleSOMX
Coolant hole thread size1/4-18 NPT
Coolant throughYes
Drill depth by diameter ratio3xD
Insert compatibilitySOGX-AL; SOMX-DT; SOMX-GF; SOMX-HD
Maximum drill depth2.0600
Maximum drill depth range2.0000 to 3.0000
Maximum drill diameter in11/16
Modular connection size3/4 in
Neck diameter in1.1020
Shank diameter in3/4
Shank length3.0000
Shank typeStraight-Cylindrical
Tool applicationHolemaking
Tool performanceGeneral Purpose
