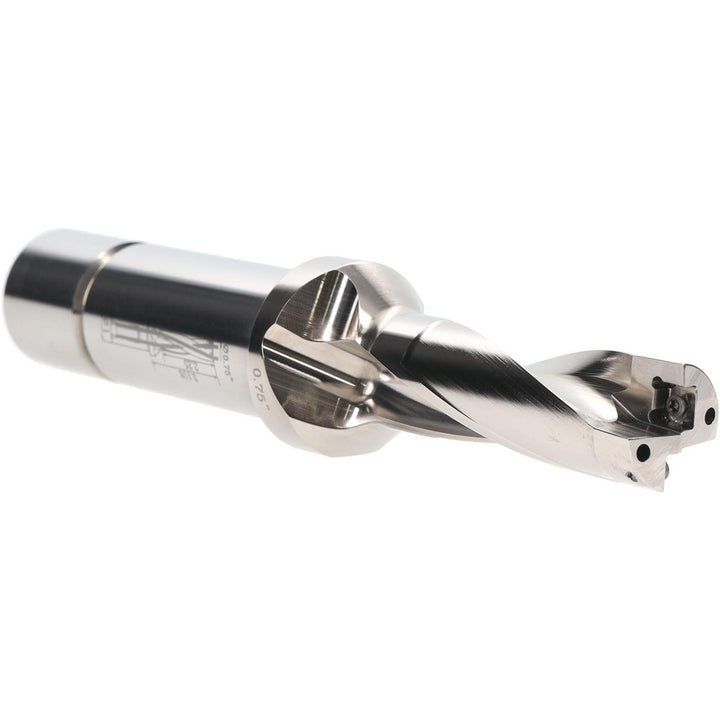

Indexable Drilling - Iscar 3201364
MFR# 3201364Series DR-TWIST
$570.88List $589.50
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201364 indexable drilling. Series DR-TWIST.
Specifications
Body length3.1200
Collar diameter1.2600
Compatible drill styleDR
Compatible insert size code060304-DT
Compatible insert styleSOMX
Coolant hole thread size1/4-18 NPT
Coolant throughYes
Drill depth by diameter ratio3xD
Drill diameter in3/4
Insert compatibilitySOGX-AL; SOMX-DT; SOMX-GF; SOMX-HD
Maximum drill depth in2-1/4
Maximum drill depth range2.0000 to 3.0000
Maximum drill diameter in3/4
Modular connection size1 in
Neck diameter in1.2600
Shank diameter in1
Shank length3.0000
Shank typeStraight-Cylindrical
Tool applicationHolemaking
Tool performanceGeneral Purpose
