Iscar

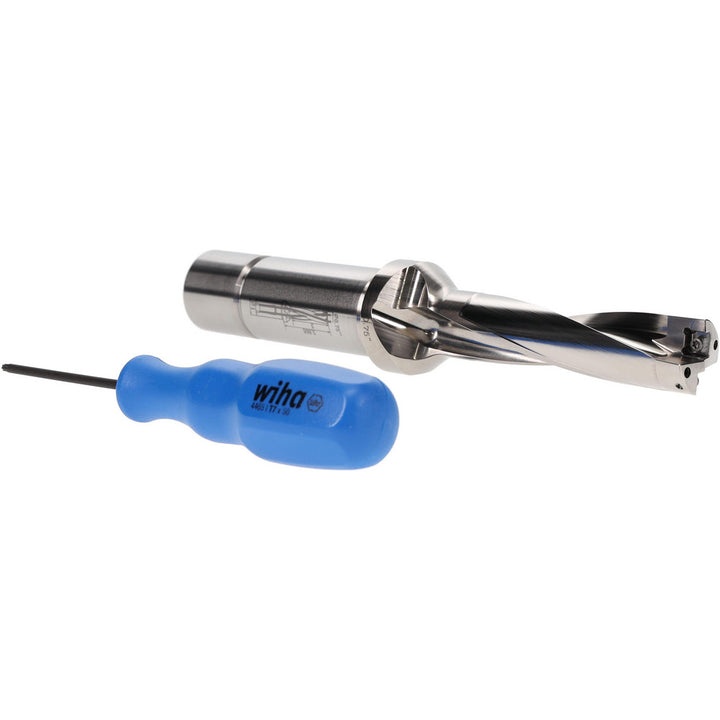

Indexable Drilling - Iscar 3201369
MFR# 3201369Series DR-TWIST
$656.29List $677.70
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201369 indexable drilling. Series DR-TWIST.
Specifications
Body length3.8600
Body side coolant hole thread size in1/16-27
Collar diameter1.2600
Compatible drill styleDR
Coolant hole thread size1/16-27
Coolant throughYes
Drill depth by diameter ratio4xD
Drill diameter in3/4
Insert compatibilitySOGX-AL; SOMX-DT; SOMX-GF
Maximum drill depth in3
Maximum drill depth range3.0000 to 4.0000
Maximum drill diameter in3/4
Modular connection size1 in
Neck diameter in1.2600
Number of drill inserts2
Shank diameter in1
Shank end coolant hole thread size in3/8-18
Shank length3.0000
Shank typeStraight-Cylindrical
Tool applicationHolemaking
Tool performanceGeneral Purpose
