Iscar

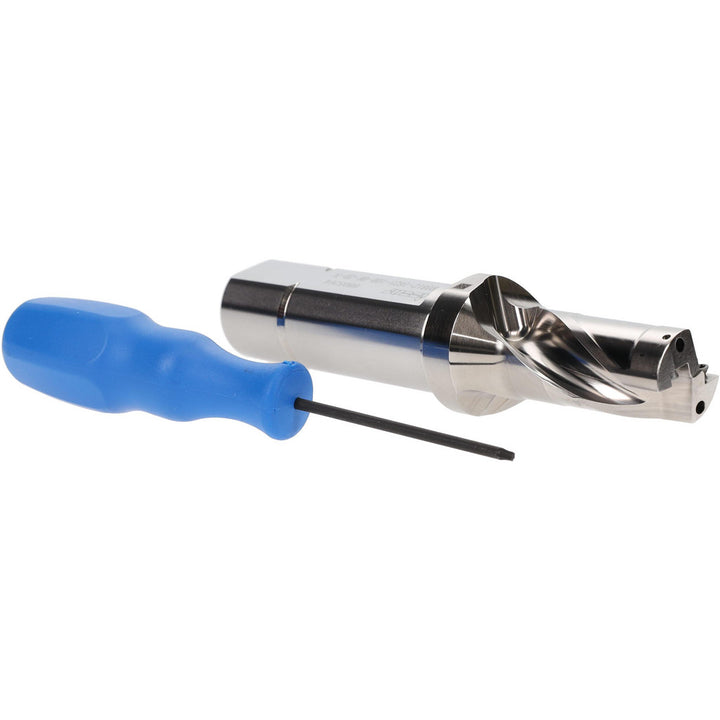

Indexable Drilling - Iscar 3201392
MFR# 3201392Series DR-TWIST
$601.68List $610.50
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201392 indexable drilling. Series DR-TWIST.
Specifications
Body length2.4900
Body side coolant hole thread size in1/16-27
Collar diameter1.2600
Compatible drill styleDR
Compatible insert size code06
Compatible insert styleSOMX
Coolant hole thread size1/16-27
Coolant throughYes
Drill depth by diameter ratio2xD
Drill diameter in13/16
Insert compatibilitySOGX-AL; SOMX-DT; SOMX-GF
Maximum drill depth1.6300
Maximum drill depth range1.0000 to 2.0000
Maximum drill diameter in13/16
Modular connection size1 in
Neck diameter in1.2600
Number of drill inserts2
Shank diameter in1
Shank end coolant hole thread size in3/8-18
Shank length3.0000
Shank typeStraight-Cylindrical
Tool applicationHolemaking
Tool performanceGeneral Purpose
